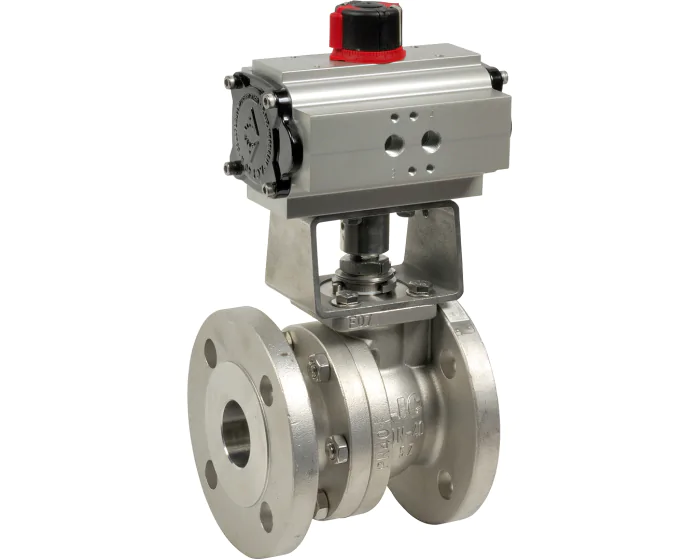

The 540IIT series JC VALVES ball valve has a CF8M stainless steel body and ball, and PTFE seats. It is actuated with pneumatic actuation ACTREG ADA/ASR, up to DN150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN65 - 2''1/2 |
| Face to Face (mm) | 170.0 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Position | Normally closed |
| Packing gland | Graphite |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Seats | PTFE |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 230 |
| TS min (°C) | -50 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category I |
| Range | JC Valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 Double acting Flanged PN16 | 516IIT065015103 | S1001776 |
€1,097.64
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 Spring return Flanged PN16 | 516IIT065016105 | S1001777 |
€1,266.54
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Double acting Flanged PN16 | 516IIT080015104 | S1001778 |
€1,379.04
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Spring return Flanged PN16 | 516IIT080016106 | S1001779 |
€1,610.30
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' Double acting Flanged PN16 | 516IIT100015105 | S1001780 |
€1,941.26
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN125 - 5'' Double acting Flanged PN16 | 516IIT125015106 | S1001781 |
€3,108.14
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN125 - 5'' Spring return Flanged PN16 | 516IIT125016107 | S1001782 |
€3,443.09
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' Double acting Flanged PN16 | 516IIT150015107 | S1001783 |
€3,930.26
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' Spring return Flanged PN16 | 516IIT150016108 | S1001784 |
€4,753.20
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Double acting Flanged PN16/40 | 540IIT015015100 | S1001785 |
€363.81
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Spring return Flanged PN40 | 540IIT015016101 | S1001786 |
€399.39
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Double acting Flanged PN40 | 540IIT020015100 | S1001787 |
€402.66
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Spring return Flanged PN40 | 540IIT020016102 | S1001788 |
€456.14
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Double acting Flanged PN40 | 540IIT025015101 | S1001789 |
€442.06
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Spring return Flanged PN40 | 540IIT025016102 | S1001790 |
€497.96
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 Double acting Flanged PN40 | 540IIT032015101 | S1001791 |
€615.99
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 Spring return Flanged PN40 | 540IIT032016102 | S1001792 |
€671.86
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Double acting Flanged PN40 | 540IIT040015102 | S1001793 |
€689.51
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Spring return Flanged PN40 | 540IIT040016103 | S1001794 |
€738.17
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Double acting Flanged PN40 | 540IIT050015102 | S1001795 |
€803.29
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Spring return Flanged PN40 | 540IIT050016104 | S1001796 |
€910.06
(excl. btw)
|
add to cart |
